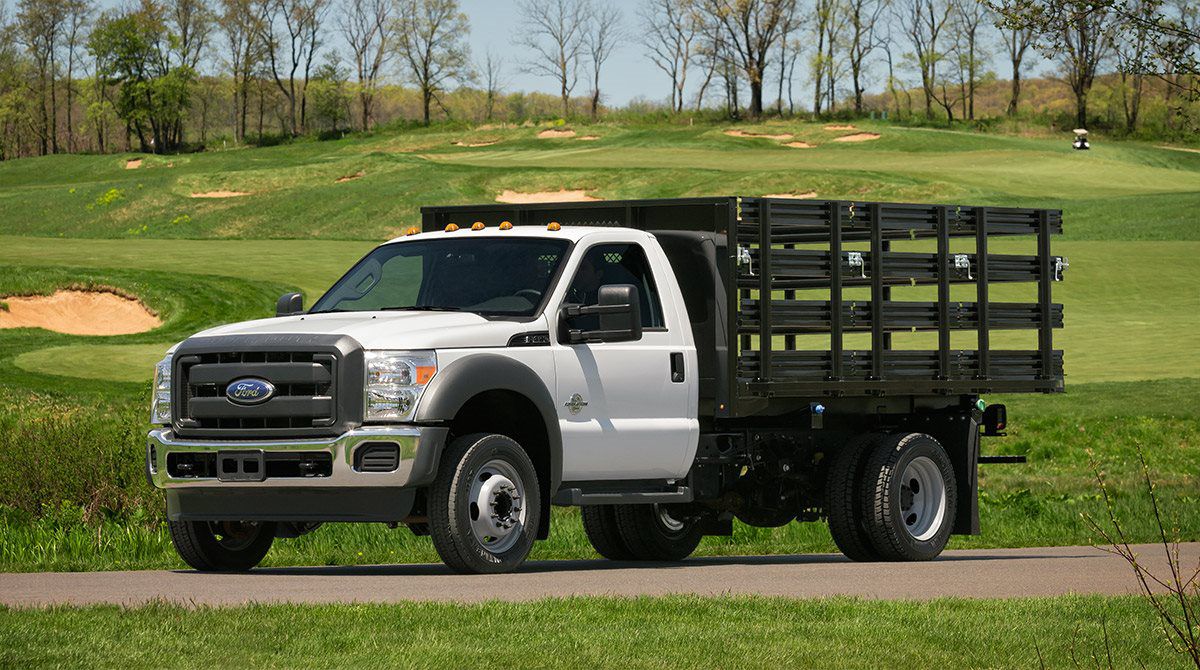

LENGTH DIMENSIONS |
||||
|
MODEL LENGTH |
9' |
12' |
14' |
16' |
|
"D" - EXTERIOR LENGTH |
9' 4" |
12' 4" |
14' 4" |
16' 4" |
|
"E" - LOADSPACE W/REAR RACKS |
9' 1-3/8" |
12' 1-3/8" |
14' 1-3/8" |
16' 1-3/8" |
|
"E" - LOADSPACE W/O REAR RACKS |
9' 3-3/4" |
12' 3-3/4" |
14' 3-3/4" |
16' 3-3/4" |
|
BODY WEIGHTS (DOES NOT INCLUDE FLOORING) |
|||||
|
MODEL LENGTH |
9' |
12' |
14' |
16' |
|
|
BASE FRAME 16" CROSSMEMBER SPACING |
96" WIDE |
433 |
557 |
646 |
725 |
Base Body Weight Includes: Front, Rear, And Side Rails, 3" I-Beam Crossmembers, 6" Structural Channel Longrails (Pipe Spool Spacers)
|
WIDTH DIMENSIONS |
|||
|
EXTERIOR PLATFORM WIDTH |
"A" - EXTERIOR WIDTH |
"B" SIDE RAIL TO SIDE RAIL |
"C" BETWEEN RACKS |
|
96 |
96" |
90-7/8" |
89-3/8" |
|
WIDTH DIMENSIONS |
|||
|
EXTERIOR PLATFORM WIDTH |
"A" - EXTERIOR WIDTH |
"B" SIDE RAIL TO SIDE RAIL |
"C" BETWEEN RACKS |
|
96 |
96" |
90-7/8" |
89-3/8" |
|
RACK DATA |
|||
|
BODY LENGTH |
SIDE RACK LAYOUT |
TOTAL RACK WEIGHTS |
|
|
WOOD |
STEEL |
||
|
9' |
5' / 4' |
177 |
198 |
|
12' |
4' / 4' / 4' |
247 |
275 |
|
14' |
5' / 4' / 5' |
271 |
304 |
|
16' |
4' / 4' / 4' / 4' |
329 |
366 |
If Rear Racks Are Used, Add 80 Pounds For Wood Racks, 89 Pounds For Steel Racks.
|
FLOOR WEIGHTS (WEIGHT PER FOOT) MULTIPLY FIGURE X MODEL LENGTH FOR TOTAL WEIGHT |
|
|
FLOORING TYPE |
96" W |
|
1.31" SOLID HARDWOOD |
35.9 |
|
1.31" APIT./.12" STEEL DIAM. PLT. |
72.5 |
|
1.31" APIT./10 GA SMOOTH STL. |
64.8 |
|
10 GA. SMOOTH STEEL ONLY |
39.5 |
|
.12" STEEL DIAMOND PLATE ONLY |
46.3 |
|
BULKHEAD WEIGHTS |
||
|
PLATFORM WIDTH |
BULKHEAD HEIGHT |
|
|
STANDARD BULKHEAD |
||
|
42" |
48" |
|
|
96 |
220 |
247 |

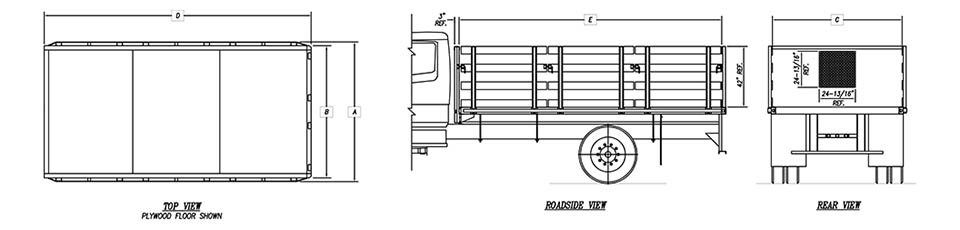

A = Overall Width
B = Width-Side Rail To Side Rail
C = Width Between Racks
D = Overall Length
E = Useable Loadspace
All Dimensions Weights And Measurements Specified Herein Are Subject To Morgan's Manufacturing Tolerances, May Change Without Notice, And May Vary Depending On Options Selected. Please Contact Morgan For Measurements For Your Particular Truck Body And Chassis Specifications.
